Drainage Solutions Bathgate
Expert garden drainage and heavy clay soil correction for Bathgate properties. Fix waterlogging, damp issues, and surface water problems with professional French drain systems, ACO drains, and oversized soakaways.
Bathgate's Severe Clay Soil Drainage Challenges
Heavy Boulder Clay Deposits
Bathgate sits on glacial till deposits containing heavy boulder clay with over 40% clay content in many areas. This creates some of West Lothian's most challenging drainage conditions, with virtually no natural water infiltration. Areas around Balbardie, Boghall, Whitburn Road, and Wester Inch are particularly affected, with clay layers extending 2-3 meters deep.

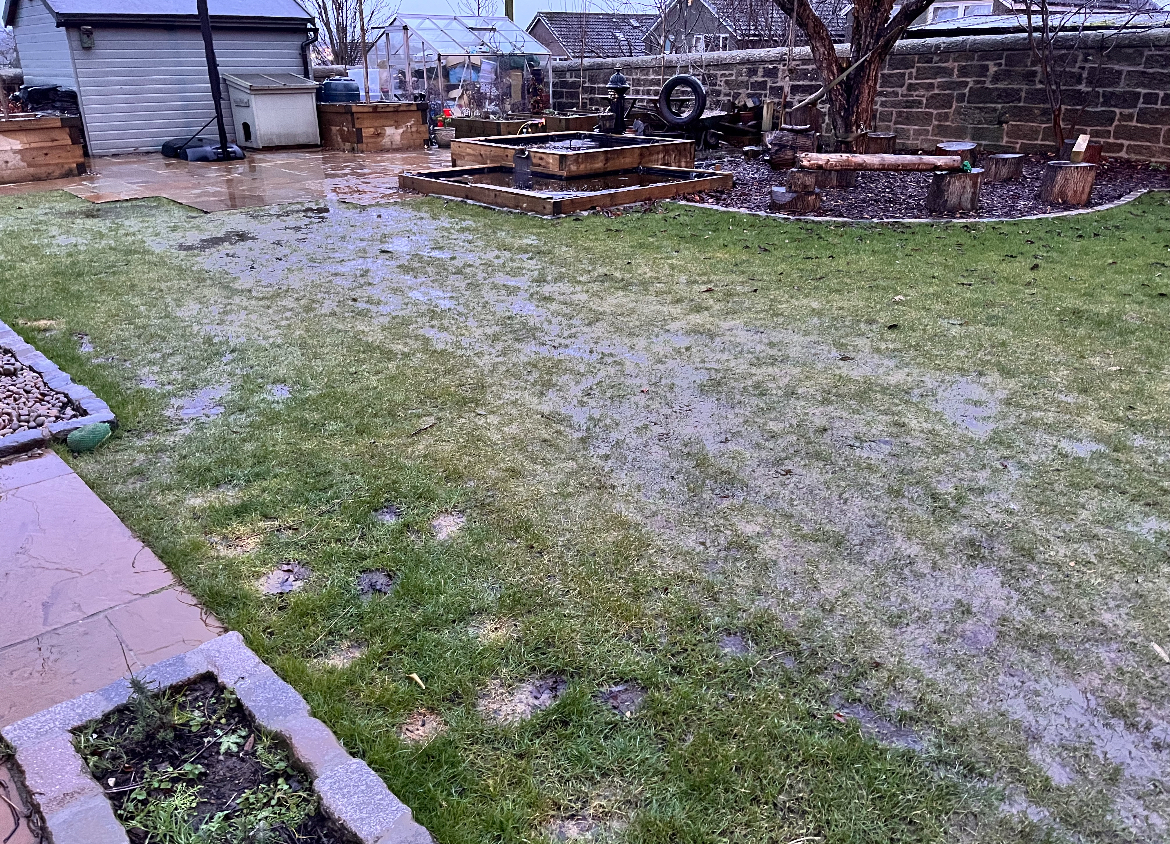

The clay's impermeability means surface water remains for weeks after heavy rainfall, creating persistent waterlogging, unusable gardens, and ideal conditions for damp penetration into property foundations and walls.
Industrial Land & Mining Legacy
Bathgate's industrial heritage and former mining activities have left compacted, disturbed soil across large areas. Land reclamation from industrial sites often involves heavy clay infill, creating drainage problems worse than natural clay soil. Former British Leyland sites and mining areas around Pyramids Park show extreme compaction requiring specialist drainage intervention.
We've resolved drainage issues on 140+ Bathgate properties where standard solutions failed, requiring French drain systems designed specifically for extreme clay conditions with oversized soakaways and geotextile protection against clay infiltration.
Case Study: Wester Inch New Build Estate
Problem: Newly built property on Wester Inch experiencing severe waterlogging with garden unusable 8 months of the year. Damp readings of 32% on ground floor external walls. Developer's minimal drainage system (single 100mm pipe to undersized soakaway) completely overwhelmed by clay soil.
Solution: Installed comprehensive French drain system with dual 110mm perforated pipes running perimeter of property, connecting to two 3m³ crated soakaways. Integrated ACO channel drains along patio edge and connected all downpipes directly to drainage system. Excavated 850mm through heavy clay, installing geotextile-wrapped 20mm aggregate backfill.

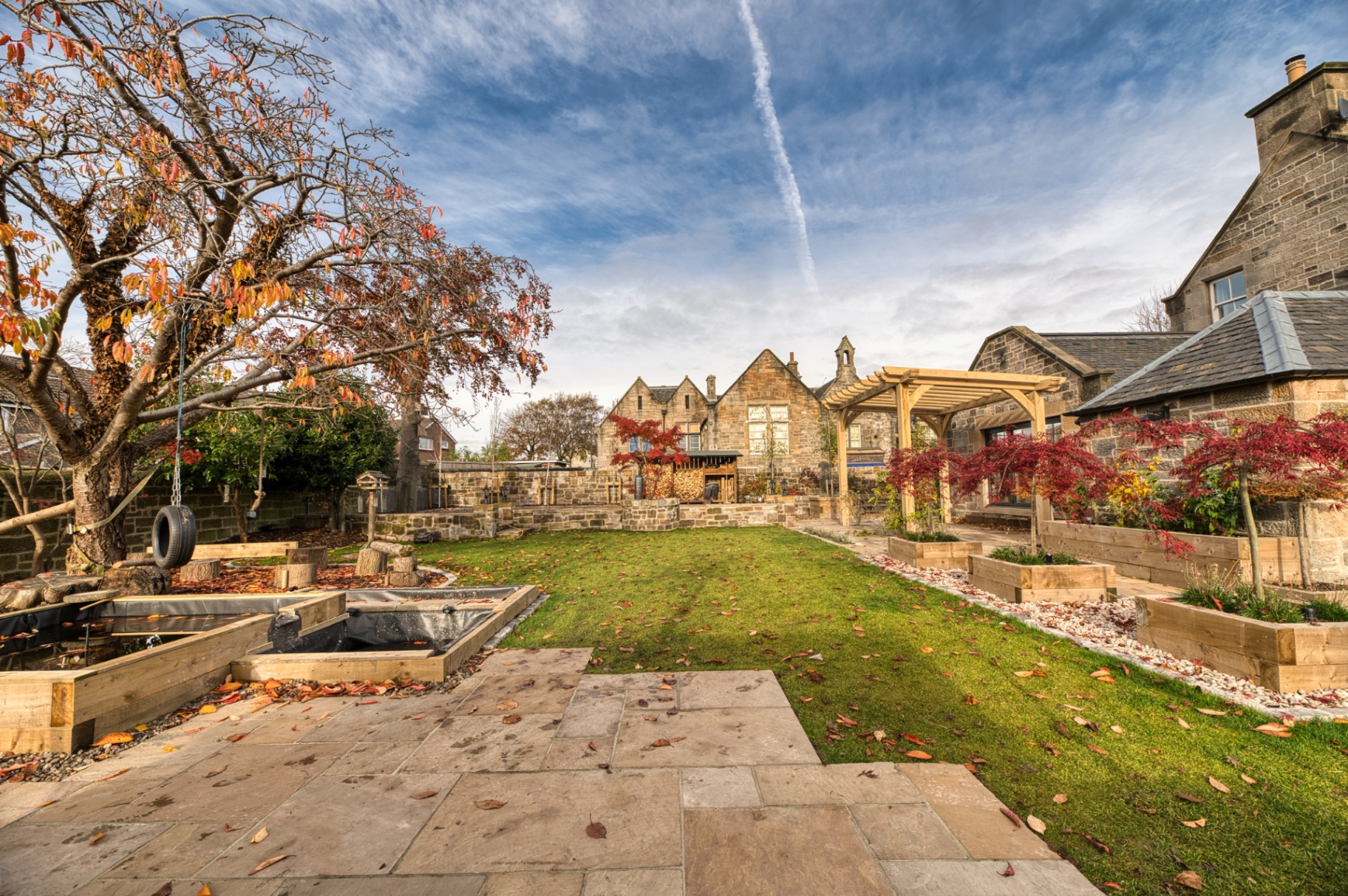

Result: Garden remained dry during wettest November in 15 years. Damp readings dropped to 13% within 3 weeks. System has performed flawlessly for 4 years with no maintenance required. Client subsequently added artificial grass over free-draining sub-base, creating year-round usable space.
Why Bathgate Properties Need Specialist Drainage
Bathgate's combination of heavy boulder clay, industrial land legacy, and inadequate developer drainage creates unique challenges requiring professional intervention. Standard garden drainage solutions consistently fail in these conditions without proper clay excavation, oversized soakaways accounting for poor infiltration rates, and robust French drain systems with geotextile protection.
Our drainage systems are engineered for Bathgate's extreme clay conditions, using mechanical excavators for clay removal, 110mm rigid drainage pipes for longevity, and soakaways sized 50-100% larger than standard calculations. We've resolved drainage problems across every Bathgate estate and neighbourhood with 10-year guarantees on all installations.
Professional Drainage Solutions for Bathgate Clay Soil
French Drain Systems
Professional French drain installation with 110mm perforated pipes, heavy-duty geotextile fabric separation, and clean aggregate backfill. Designed specifically for Bathgate's heavy clay soil with proper falls (1:40 minimum) and robust construction to withstand clay movement and compaction.
From £2,200
Oversized Soakaway Systems
Crated soakaway installation sized for poor clay infiltration rates. Systems typically 50-100% larger than standard calculations to ensure effective water disposal. Positioned in optimal locations with perforated distribution pipes. Compliant with Building Standards Scotland requirements.
From £1,800
ACO Channel Drains
ACO channel drain systems for rapid surface water collection before clay saturation. Ideal for patios, driveways, and downpipe connections. Integrated with French drain system for comprehensive water management. Stainless steel or galvanized grating options available.
From £800
Bathgate Drainage Installation Process

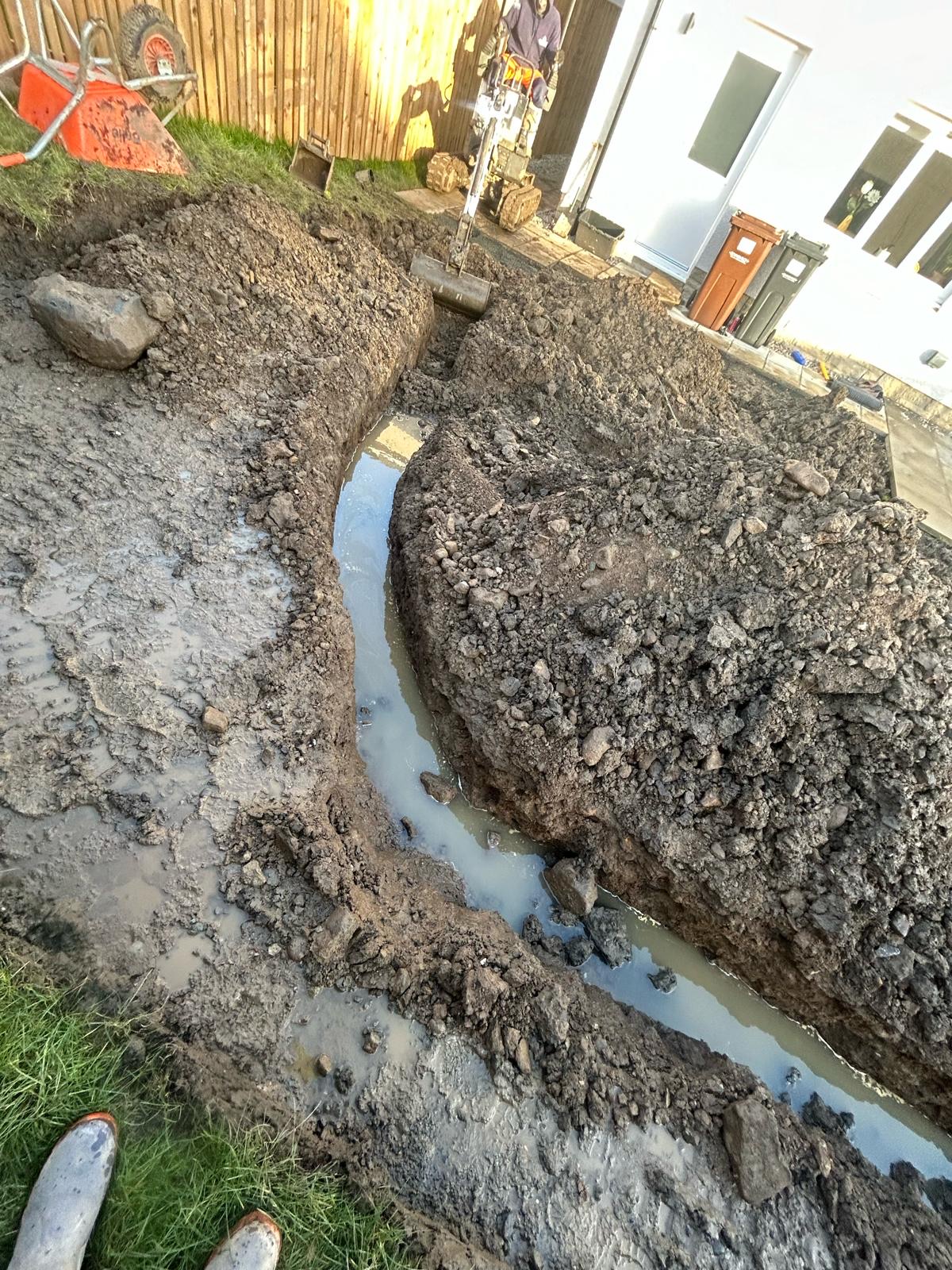

Clay Excavation
Mechanical excavation through Bathgate's compacted boulder clay to proper depth for effective drainage.

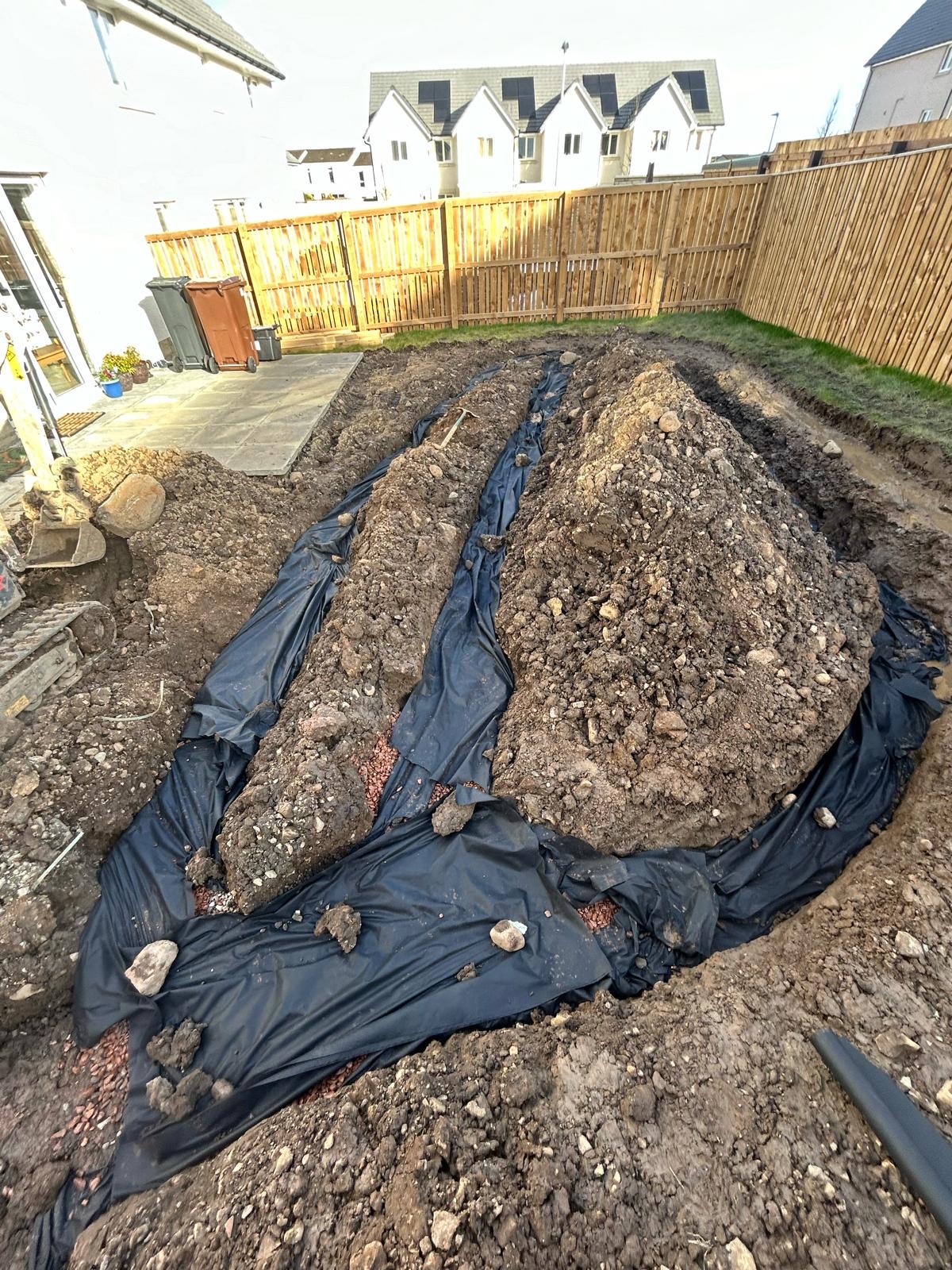

French Drain Installation
110mm perforated pipes with geotextile protection and clean aggregate backfill.

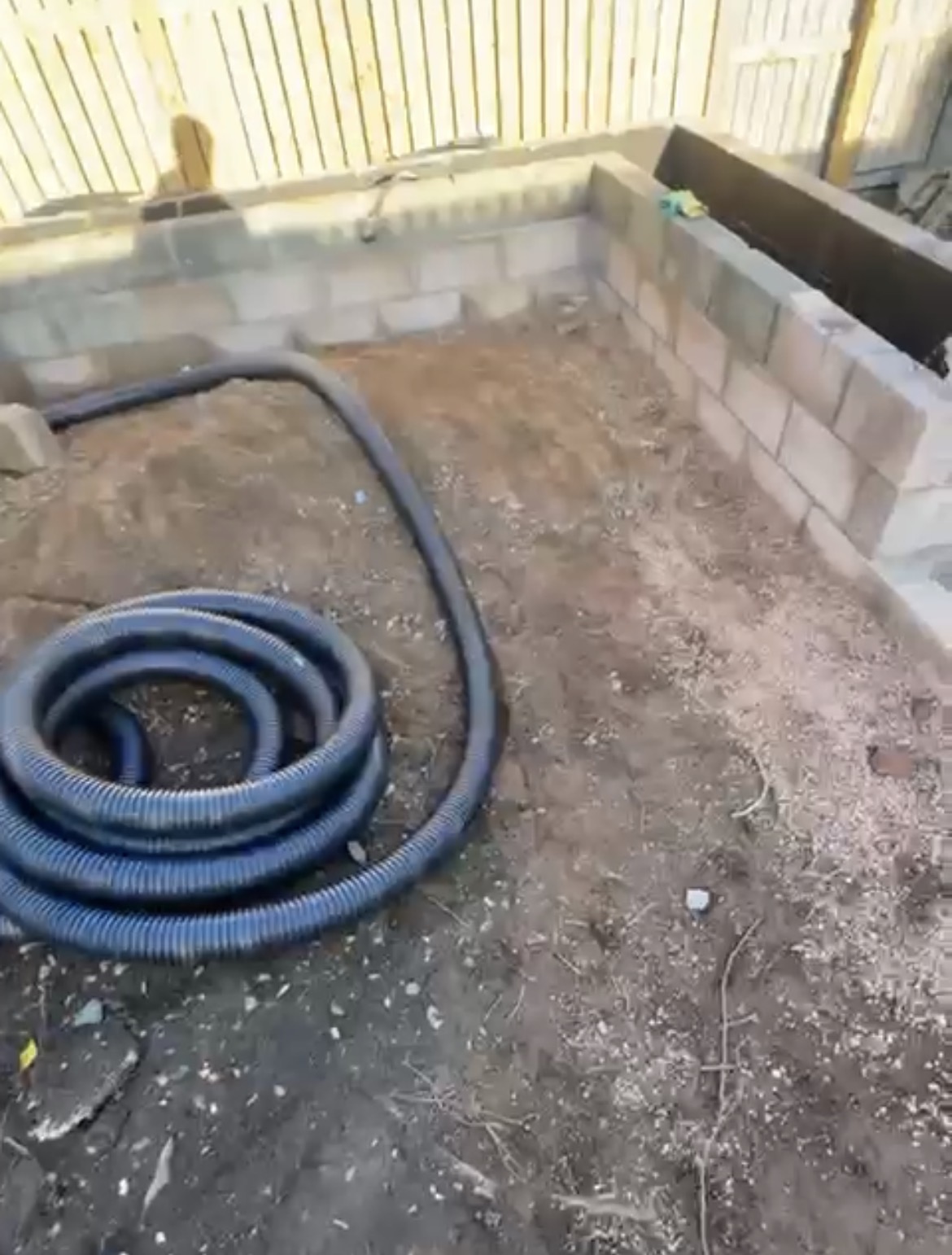

Surface Water Integration
ACO drains and downpipe connections for comprehensive water management.
Bathgate Drainage Installation Costs
| Drainage Solution | Cost Range | Installation Time |
|---|---|---|
| Basic French Drain System | £2,200-£3,000 | 3-4 days |
| Comprehensive French Drain + Soakaway | £3,200-£4,200 | 4-6 days |
| ACO Channel Drain System | £800-£1,500 | 1-2 days |
| Soakaway Installation (2-3m³) | £1,800-£2,400 | 2-3 days |
| Perimeter Drainage for Damp Correction | £2,800-£3,800 | 4-5 days |
All prices include clay excavation and disposal, materials, installation, and 10-year workmanship guarantee. Heavy clay conditions in Bathgate typically add £500-£900 to standard drainage costs due to mechanical excavation requirements.
Frequently Asked Questions
Fix Your Bathgate Drainage Problems
Free site surveys and detailed quotes for all Bathgate properties. 140+ successful installations with 10-year guarantees.
