Pergola Design Ideas for Scottish Gardens

Updated April 2026 Maybury Landscaping 9 min read

Structural timber pergola installed in an Edinburgh garden by Maybury Landscaping

A pergola turns a patio into a destination. But Scottish weather punishes anything under-specified, and most pergolas you see online were never designed for 80 km/h gusts and 60+ frost days a year. These are the pergola designs we actually build — proven across Edinburgh, West Lothian, Stirling and Falkirk gardens.

Idea 1 — Structural Treated Timber (Best Value)

The Maybury staple — 150×150 mm treated softwood posts, 200×50 mm beams, joists at 400 mm centres, all bolted to galvanised post anchors set in concrete pads to 600 mm. At £3,500–£5,500 installed for a 3.5 m × 3.5 m structure, it's the best value pergola that genuinely lasts 15+ Scottish winters. Stain in a warm walnut or charcoal black finish; both are extending well beyond a decade in our completed projects.

Idea 2 — Premium Oak Structural Pergola

For heritage and high-end gardens, green oak posts and beams (150×150 or 200×200 mm) age to a beautiful silver-grey and require no chemical treatment. Budget £6,500–£10,500. Pair with sandstone paving and structural planters for the classic Maybury heritage look — the design we deployed on our Kirkliston and Linlithgow flagship projects.

Indian sandstone column pergola in a designed Edinburgh garden

Idea 3 — Aluminium Louvered Pergola

The highest-performance modern option. Aluminium frame with motorised louvered roof opens, closes and tilts to control sun and rain — fully weatherproof and zero-maintenance. Integrated LED lighting and side screens extend usable evenings deep into autumn. £8,000–£18,000 installed depending on size and integration. The fastest-growing pergola category in our 2025–26 quotes.

Idea 4 — Sandstone Column Architectural Pergola

Stone-column pergolas (typically 4–6 columns at 250 mm × 250 mm dressed sandstone) with timber or steel beam tops are the architectural premium choice. These are generational structures — they outlast the property in many cases. £12,000–£28,000 installed and ideal for heritage Edinburgh, Cramond, Stockbridge and Linlithgow gardens.

Idea 5 — Pergola + Composite Deck Combination

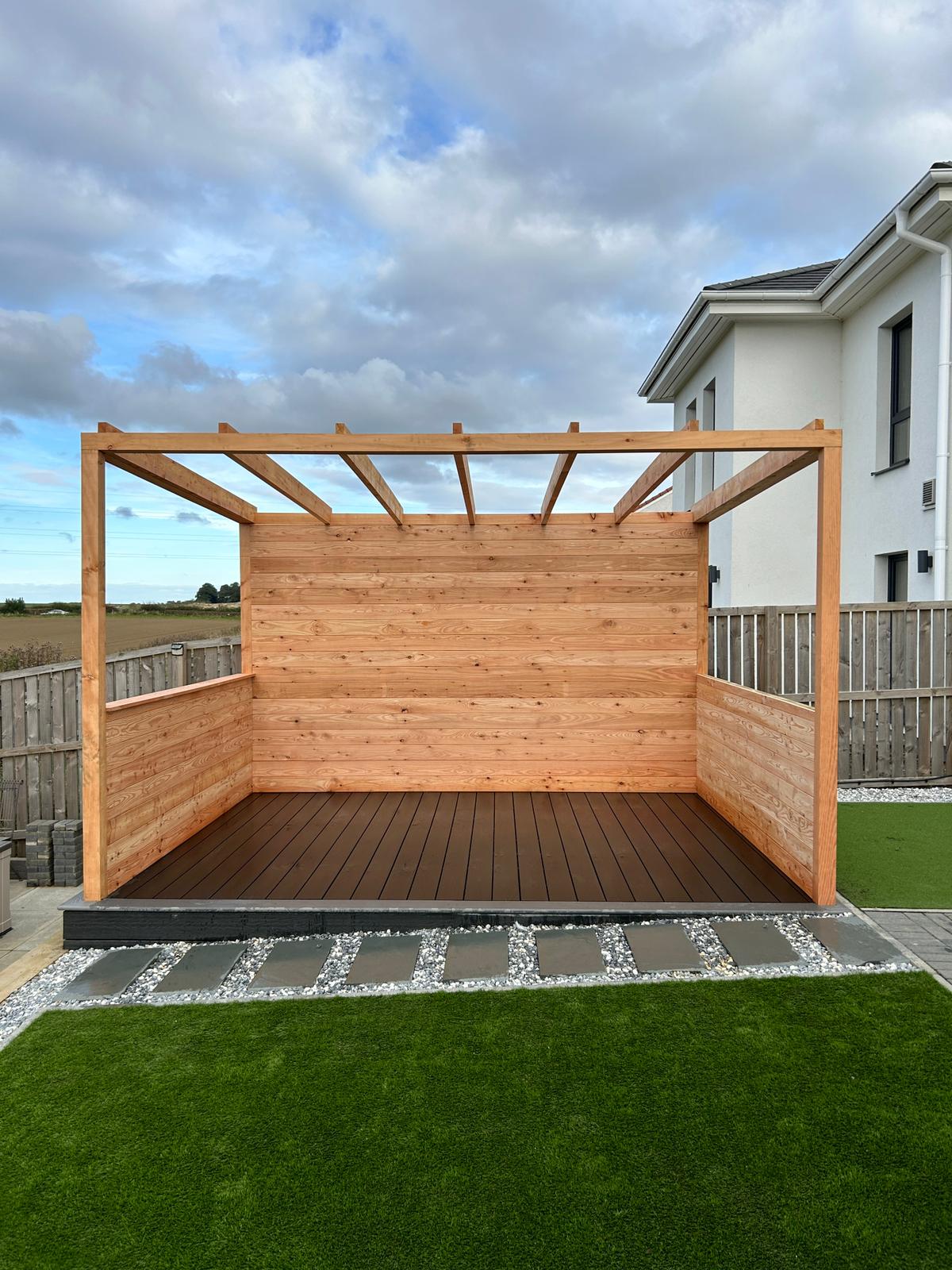

Composite decking with integrated timber pergola in a modern Scottish garden

A pergola sited over a raised composite deck creates a defined outdoor "room" that feels architecturally integrated rather than added-on. Plan the deck and pergola together — post anchors should land directly through the deck into the structural sub-frame or a dedicated concrete pad below. Total combined cost £9,500–£18,000 for a typical 25–35 m² installation.

Pergola Design Mistakes to Avoid

Posts under 150×150 mm — twist and split in Scottish wind
Sub-3.6 m internal footprint — too tight for actual dining
Beam height under 2.4 m — feels oppressive
Skipping post anchors — direct ground contact = rot within 5 years
No falls on attached pergolas — water sits, joints fail
Flat roof tops without drip edge — water tracks back to structure

Frequently Asked Questions

What is the best pergola design for a Scottish garden?

For Scottish weather, the best-performing pergolas are 4-post structural timber (oak or pressure-treated softwood at 150×150 mm) or aluminium with louvered roofs. Both withstand exposure, frost and 80 km/h Edinburgh wind events. Avoid lightweight fence-post-style pergolas (75×75 mm) — they twist and split within 2 winters. Bolt every post to galvanised post anchors set in concrete to a minimum 600 mm depth.

How big should a pergola be?

For dining underneath, plan for a minimum internal footprint of 3.6 m × 3.6 m (12.96 m²) — this comfortably covers a 6-seat dining set with chairs pulled out. Smaller (3 m × 3 m) feels cramped once furniture and movement are added. Free-standing feature pergolas with seating only can be 2.4 m × 2.4 m. Beam height is typically 2.4 m clear, rising to 2.6–2.7 m for taller users or hanging lights.

Do pergolas need planning permission in Scotland?

Pergolas under 3 m in height are permitted development for most Scottish properties, provided the total non-dwelling structures do not exceed 50% of the curtilage. Listed buildings, conservation areas (e.g. Edinburgh New Town, Cramond, parts of Linlithgow) and front-garden installations have additional restrictions. Always check with your local planning authority before commissioning a bespoke pergola.

Timber, aluminium or sandstone pergola — which is best?

Timber (oak or treated softwood) gives the warmest aesthetic and the lowest cost (£3,500–£8,000 installed). Aluminium with louvered/retractable roof is the highest-performance option (£8,000–£18,000) — fully weatherproof, controllable shade, zero maintenance. Sandstone or stone column pergolas are the premium architectural choice (£12,000–£28,000+) — stunning, structural and add real property value, particularly for heritage Edinburgh properties.

How much does a pergola cost in Edinburgh?

Installed pergola costs in Edinburgh and Central Scotland in 2026: standard 4-post treated timber 3.5 m × 3.5 m: £3,500–£5,500. Premium oak structural pergola: £6,500–£10,500. Aluminium louvered pergola: £8,000–£18,000 depending on size and integration. Sandstone column pergola: £12,000–£28,000. All figures inc. VAT and assume installation onto a properly bedded patio sub-base.
